Welcome to Harvin!
HARVIN INDUSTRIES is a reputed manufacturer of motors and pumps since 2009, with the experience of 15 years in the Pumps & Motors field. Based at Coimbatore, we provide comprehensive solution to the customers through a broad technical background in pumps and motors design and smart infrastructure. The experts team focus on value engineering, quality and system improvement which have made us experience a consistent increase in customer loyalty.

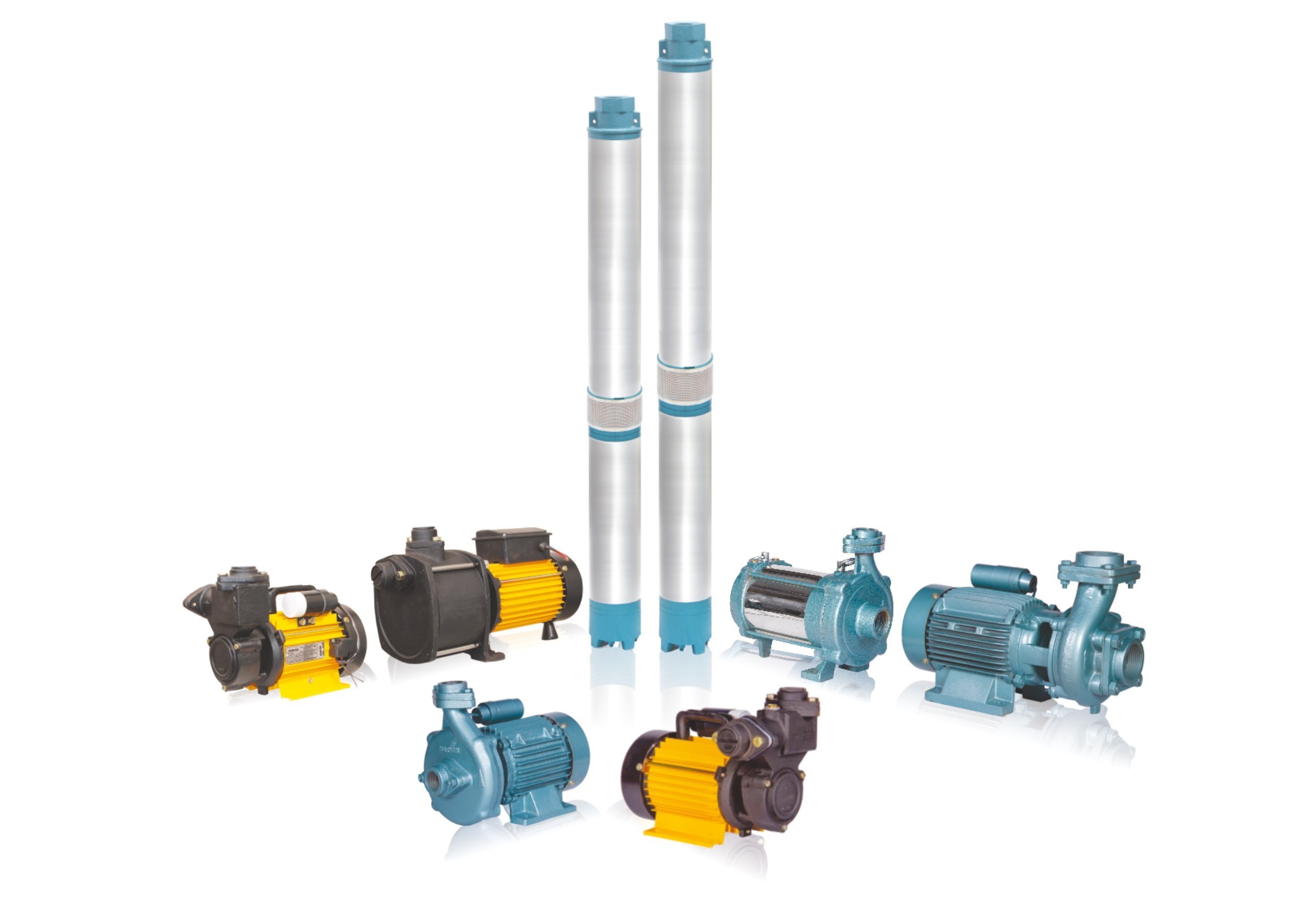

Our range includes Submersible, Borewell, Openwell Pumps, and Monoblock Motors, manufactured using high-grade materials and strict quality standards. Built to handle Indian power and water conditions, Harvin Pumps products offer dependable operation even under demanding environments.
Backed by a wide dealer network and responsive after-sales support, we are committed to customer satisfaction, energy efficiency, and continuous improvement.
Our Products
SELFPRIMING PUMPS > HSP SERIES
Expertly engineered for the best possible efficiency and suction lift characteristics.
Descriptions
- Harvin peripheral pumps impellers are designed to give the best possible efficiency and suction lift characteristics.
- Mechanical seal made of carbon and ceramic is lifted over the shaft.
- Harvin pumps are power-driven by a totally enclosed fan cooled A.C. induction two-Pole motor suitable for continuous duty. (S1)
- Motor stator is made of low volt steel laminations assembled.
- Balanced rotor ensures vibration free and noise free operations.
- The windings are of high-grade enameled copper wire.
Technical Data & Material Construction
| TECHNICAL DATA | |
|---|---|
| Power | 0.37kW - 0.75kW (0.5HP - 1.0HP) |
| RPM | 2880 RPM (CSR) type. |
| Voltage | Single Phase 160-240V, 50Hz Frequency |
| Head Range | 3 to 52 mtrs |
| Capacity | 1500 - 3000 LPH |
| Max Suction Lift | 8 metre |
| Max Liquid Temp | 33°C maximum |
| Insulation / Duty | Class B / S1 (Continuous) |
| MATERIAL CONSTRUCTION | |
| Pump Casing | Cast Iron |
| Motor Frame | Aluminum / Casting |
| Impeller | Brass (Forged) |
| Shaft | Stainless Steel / EN8 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
Model Gallery

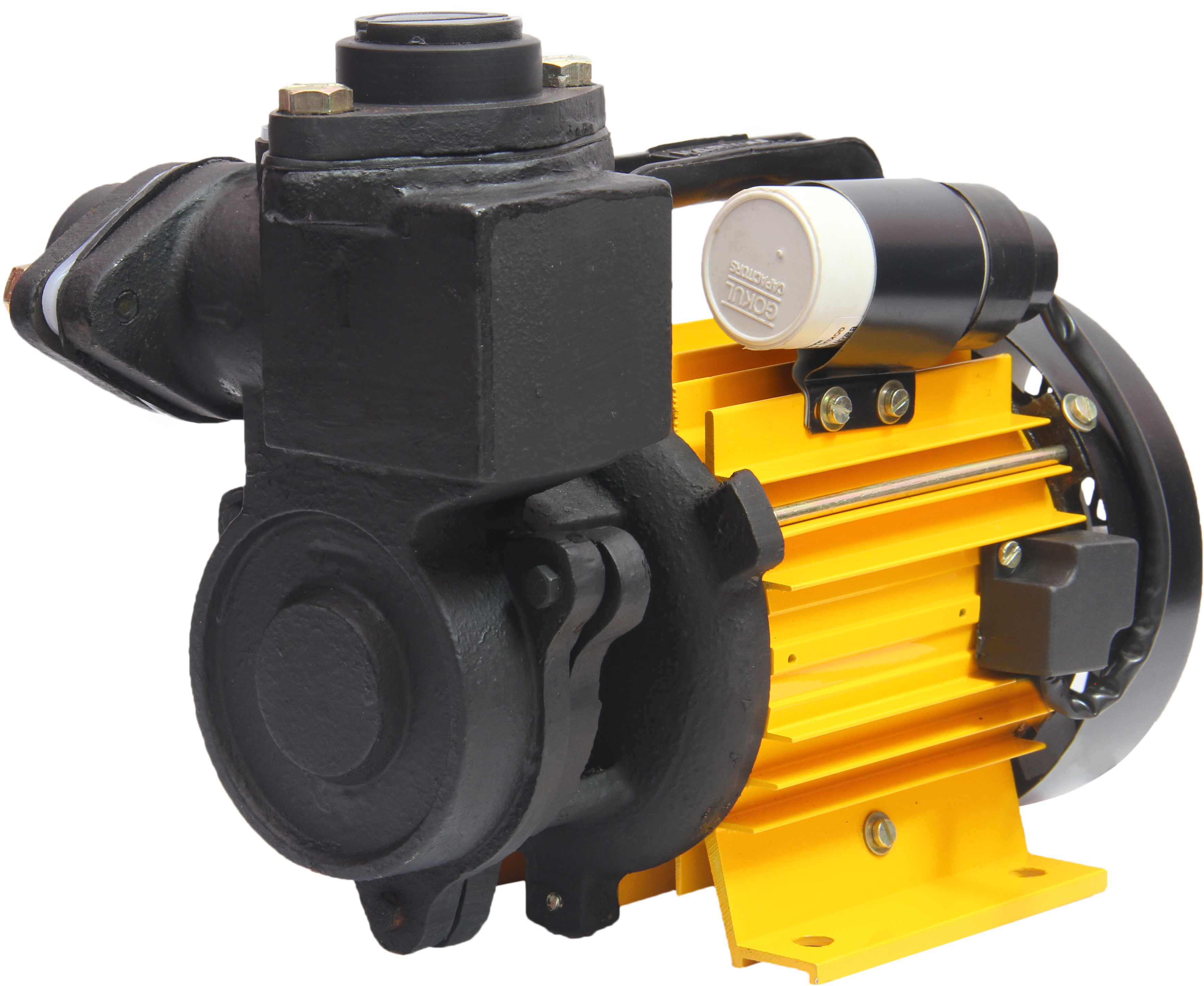

0.5HP Big Flow

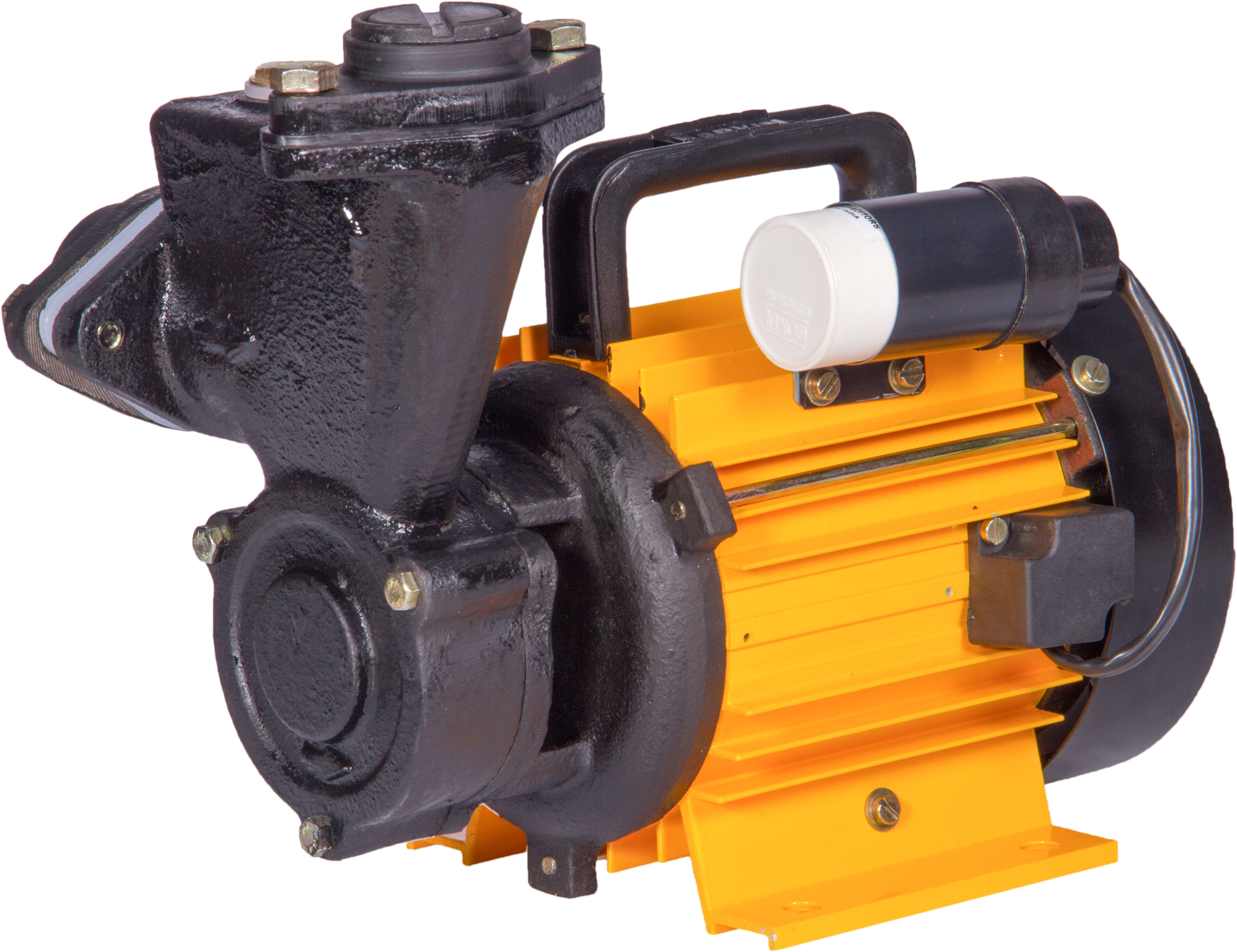

0.5HP Regular

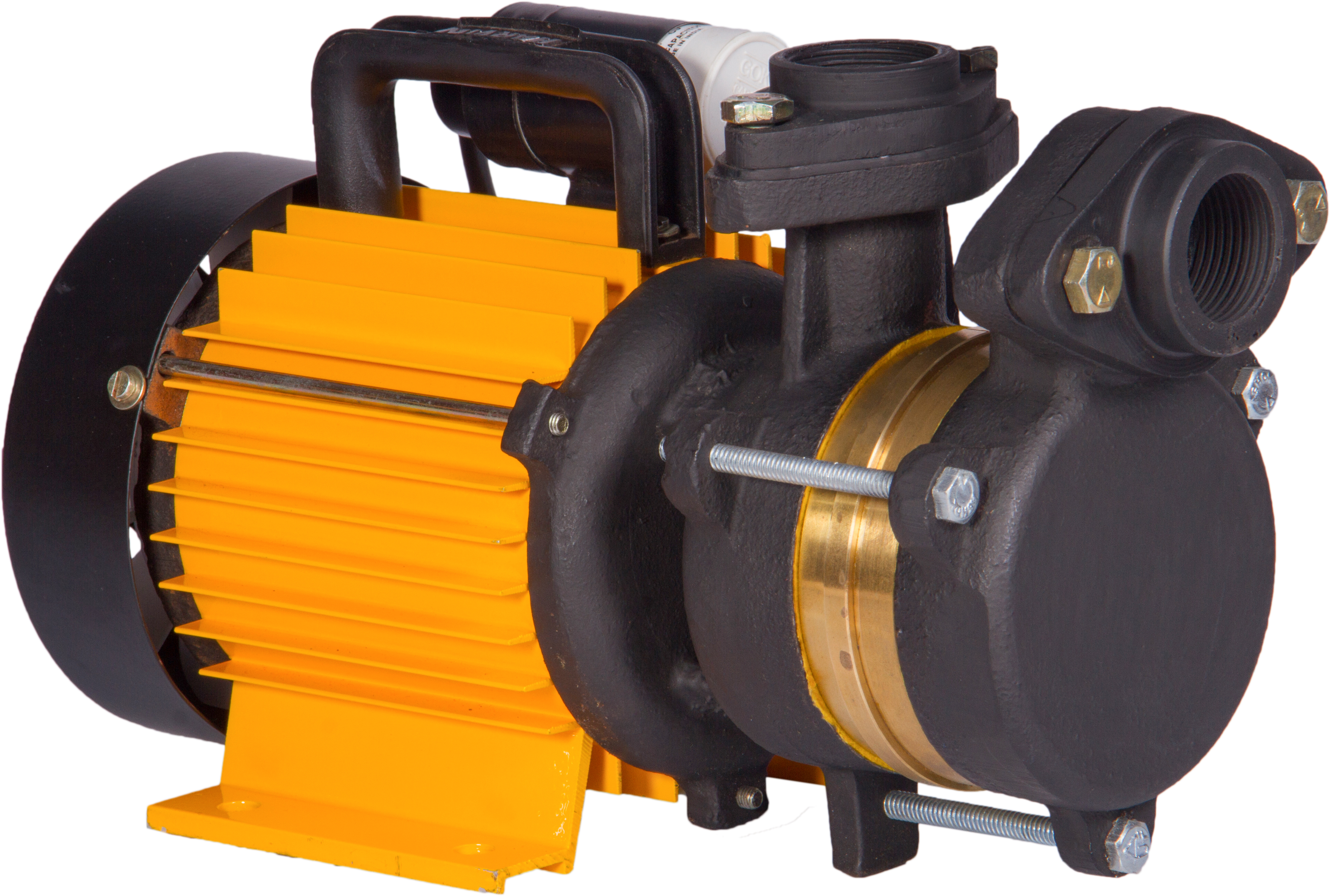

0.5HP Magic Suction

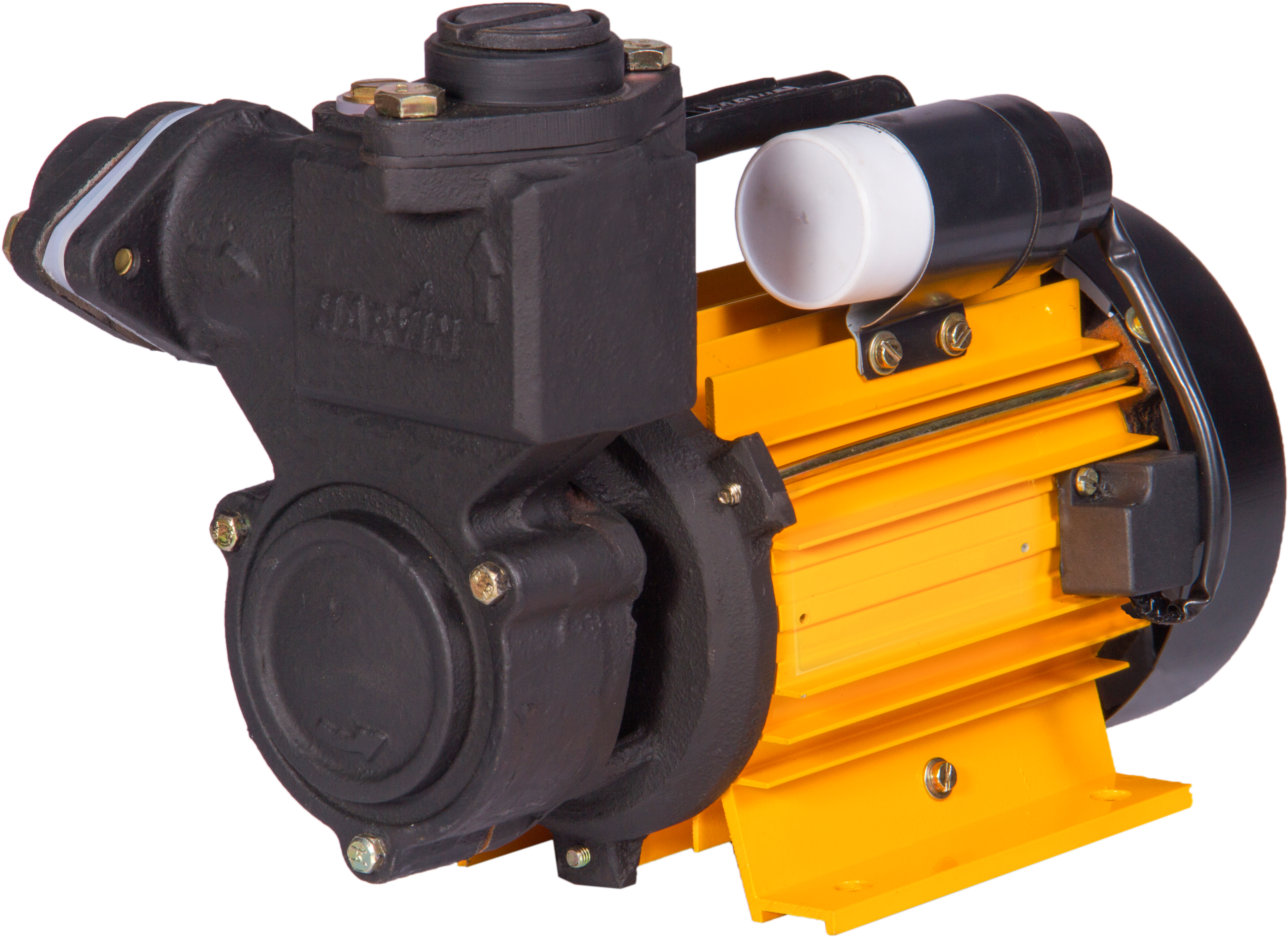

1.0HP Regular

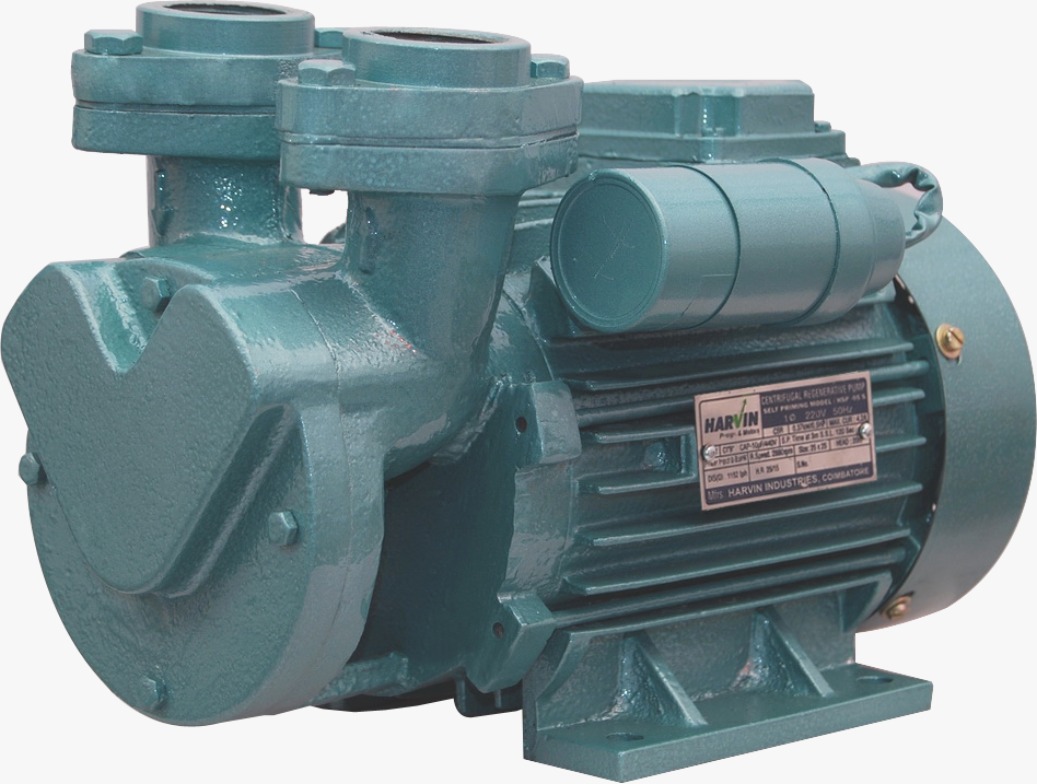

V-Type
Applications
- Domestic water supply
- Fountains
- Municipal water supply
- Lawn Sprinkler
- Gardening
- Pressure Boosting Systems
- Automobile Washing
- Multi-Storied building
DMS SERIES
Expertly engineered for the best possible efficiency and suction lift characteristics.
Descriptions
- Harvin peripheral pumps impellers are designed to give the best possible efficiency and suction lift characteristics.
- Mechanical seal made of carbon and ceramic is lifted over the shaft.
- Harvin pumps are power-driven by a totally enclosed fan cooled A.C. induction two-Pole motor suitable for continuous duty. (S1)
- Motor stator is made of low volt steel laminations assembled.
- Balanced rotor ensures vibration free and noise free operations.
- The windings are of high-grade enameled copper wire.
Technical Data & Material Construction
| TECHNICAL DATA | |
|---|---|
| Power | 0.37kW - 0.75kW (0.5HP - 1.0HP) |
| RPM | 2880 RPM (CSR) type. |
| Voltage | Single Phase 160-240V, 50Hz Frequency |
| Head Range | 3 to 36 mtrs |
| Capacity | 1500 - 3000 LPH |
| Max Suction Lift | 8 metre |
| Max Liquid Temp | 33°C maximum |
| Insulation / Duty | Class B / S1 (Continuous) |
| MATERIAL CONSTRUCTION | |
| Pump Casing | Cast Iron |
| Motor Frame | Aluminum / Casting |
| Impeller | Brass (Forged) |
| Shaft | Stainless Steel / EN8 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
Model Gallery

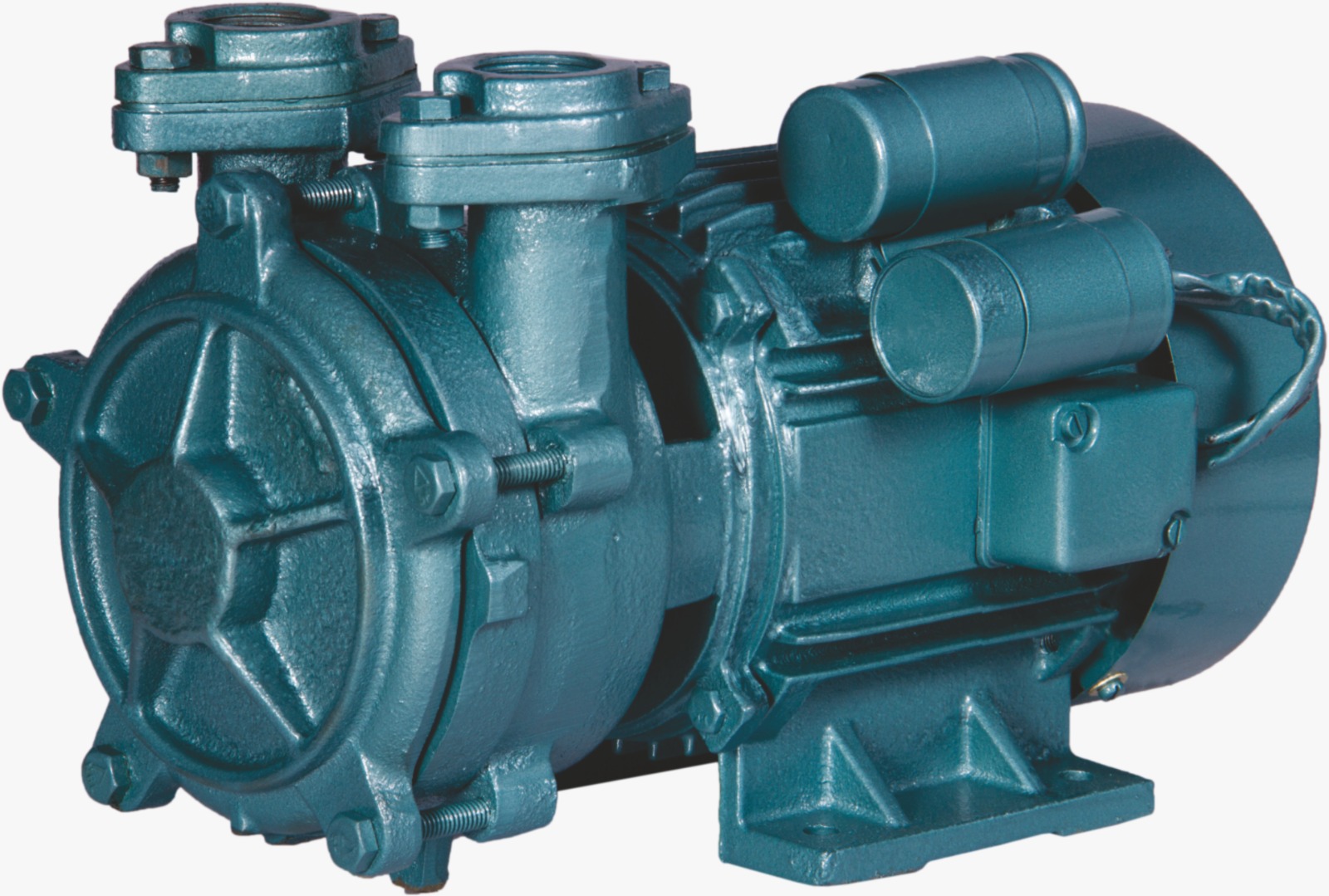

DMS Series
Applications
- Domestic water supply
- Fountains
- Municipal water supply
- Lawn Sprinkler
- Gardening
- Pressure Boosting Systems
- Automobile Washing
- Multi-Storied building
CENTRIFUGAL MONOBLOCK PUMPS > HCM SERIES
Expertly designed to give the best possible hydraulic efficiency and good suction lift.
Descriptions
- Harvin Centrifugal mono block pumps impellers are designed to give the best possible hydraulic efficiency and good suction lift.
- Mechanical seal is fitted over the shaft, which is ground to close tolerance.
- Harvin Centrifugal mono block pumps are power driven by a totally enclosed fan cooled A.C. induction two Pole motor.
- Motor stator is made of low volt steel laminations assembled.
- Dynamically balanced rotor ensures vibration free and noise free operations and increases the life of the bearings and seal.
- The windings are of high-grade enameled copper wire and varnish impregnated.
- A thermal cutout relay (motor protector) is incorporated in all single-phase motors.
Technical Data & Structural Characteristics
| TECHNICAL DATA | |
|---|---|
| Power | 0.37kw - 1.5kw (0.5HP - 2.0HP) |
| Frequency / Speed | 50 Hz / 2880 RPM |
| Version | Single Phase 200-240V, 50Hz, A.C Supply Permanent split capacitor (CSR) |
| Insulation / Duty | Class "B" / Type S1 (Continuous) |
| Max Suction Lift | 8 metre |
| Max Liquid Temp | 33 C |
| STRUCTURAL CHARACTERISTICS | |
| Pump Casing | Cast Iron |
| Motor Frame | Cast Iron |
| Impeller | Cast Iron / Stainless Steel (SS) / Noryal |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
| Shaft | Stainless Steel / EN8 |
| Additional Features | Dynamically balanced rotating parts in built - thermal overload protector back pullout |
Model Gallery

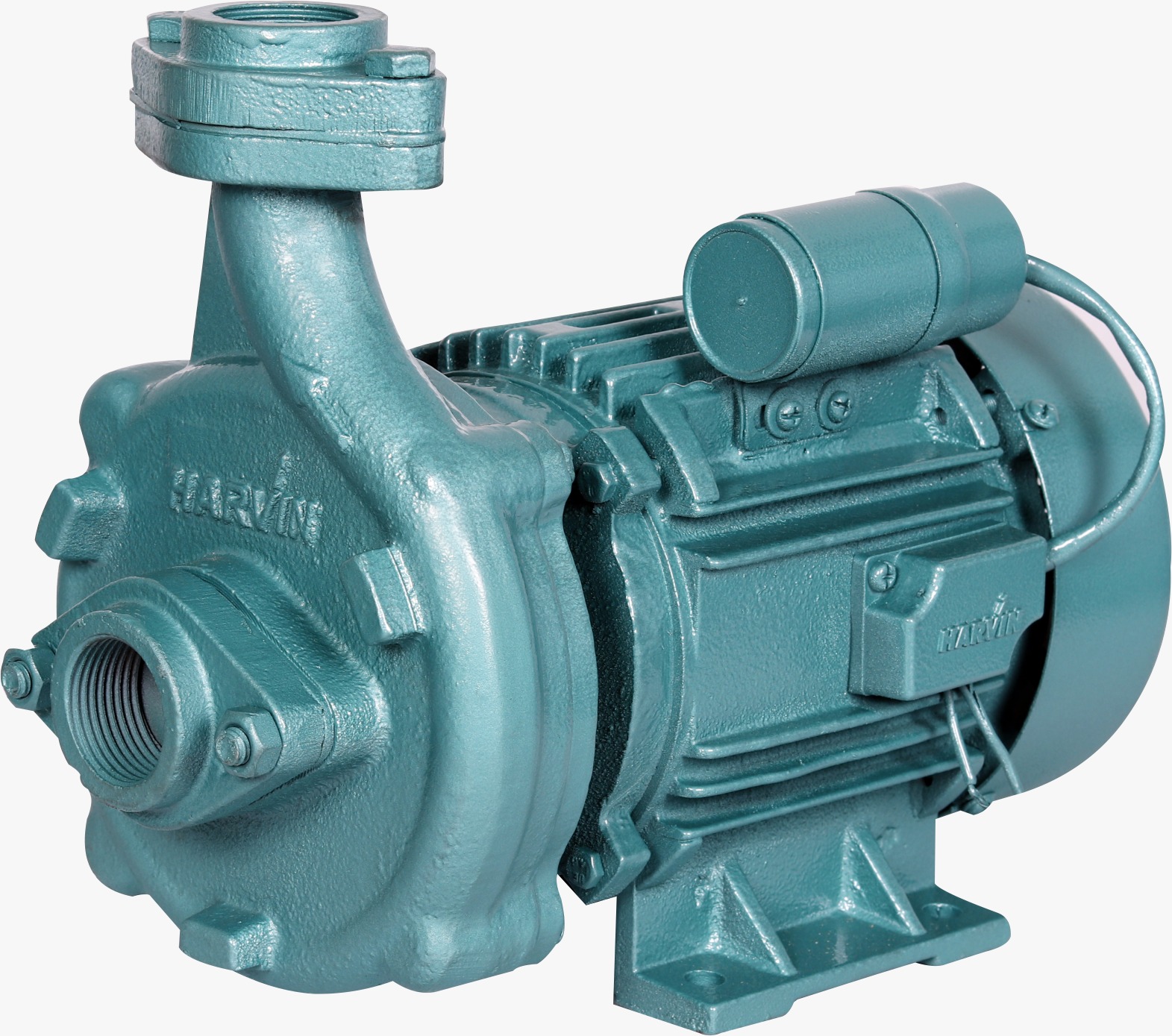

0.5HP
25mm × 25mm

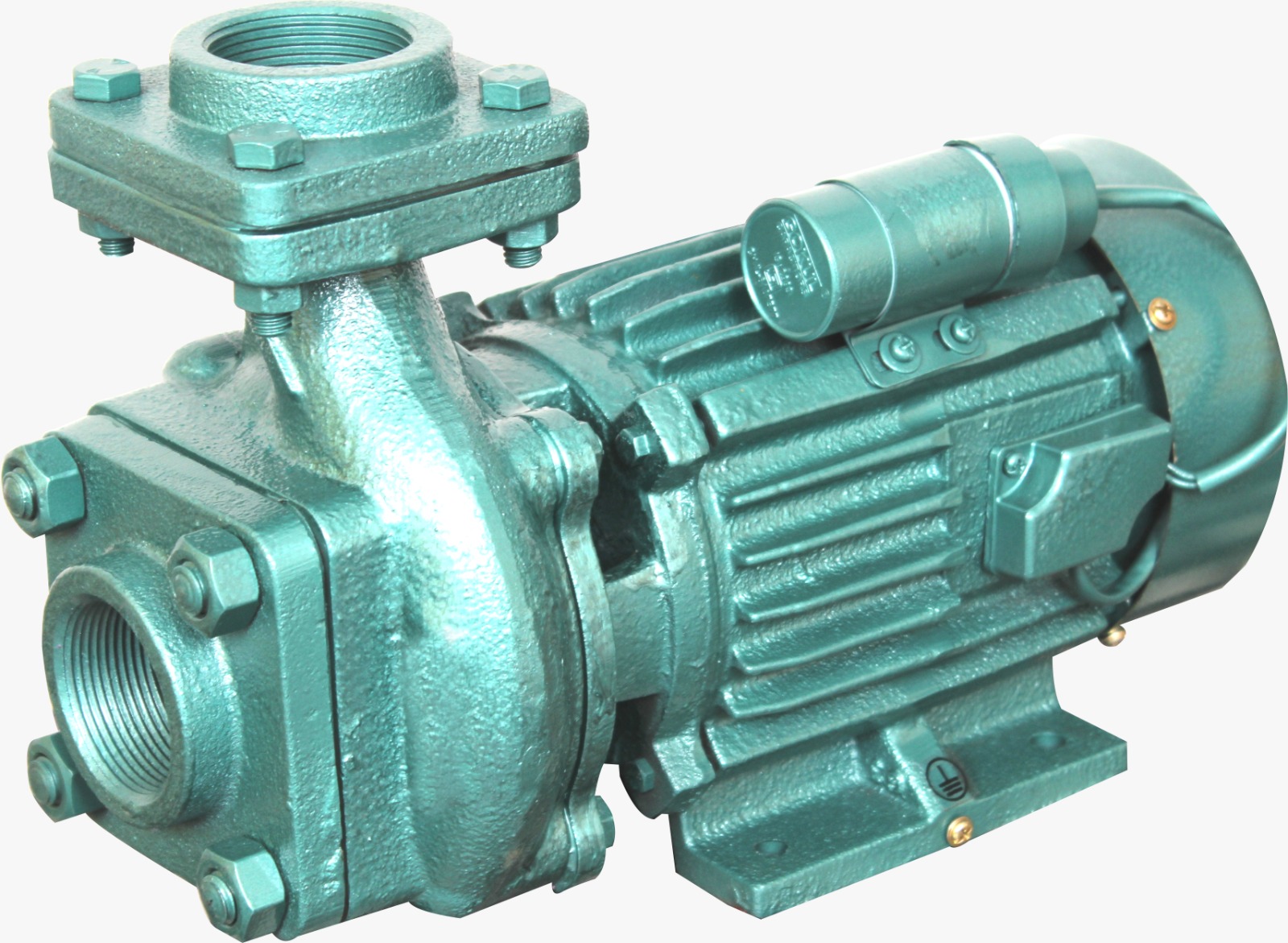

0.5HP
40mm × 40mm

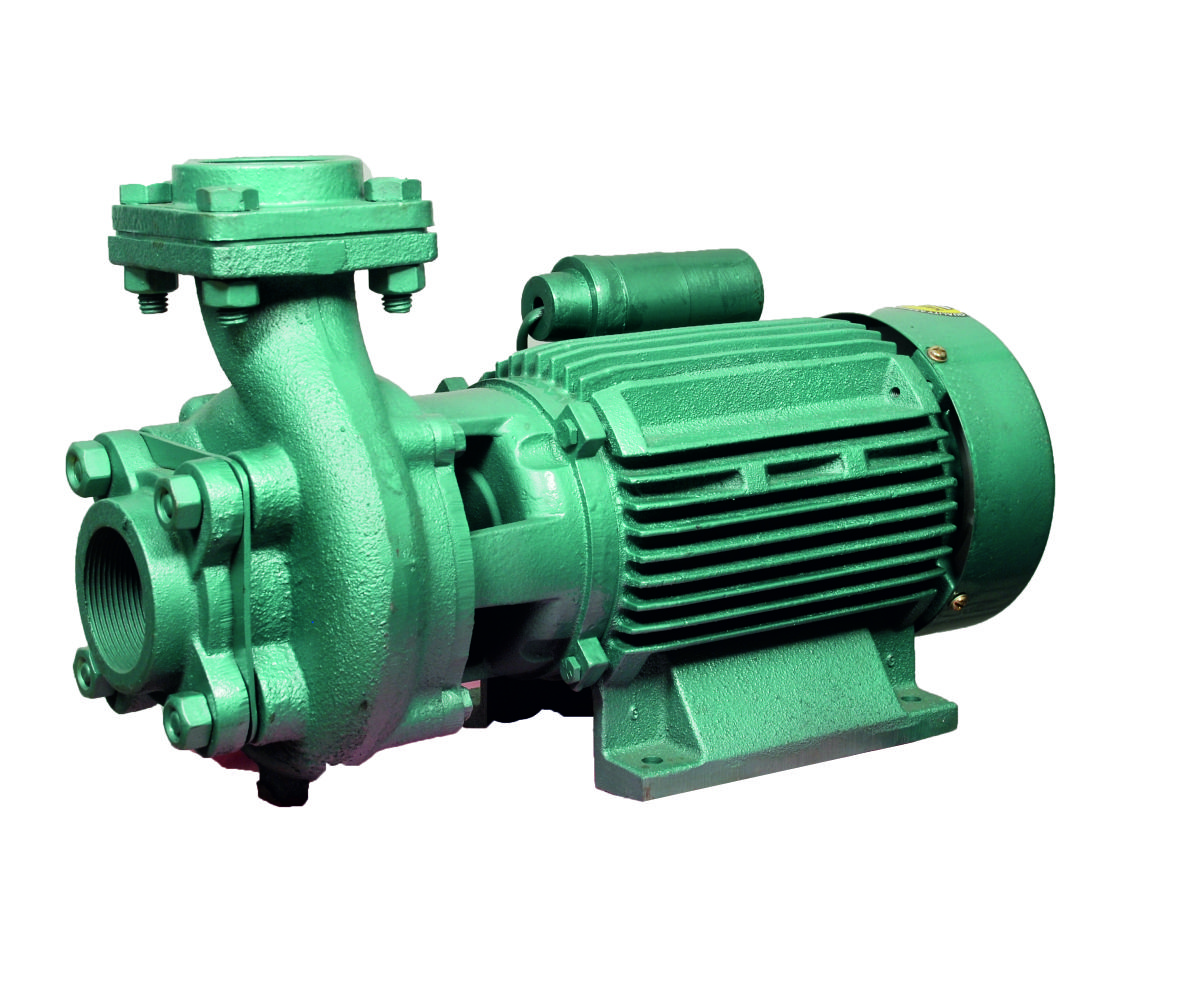

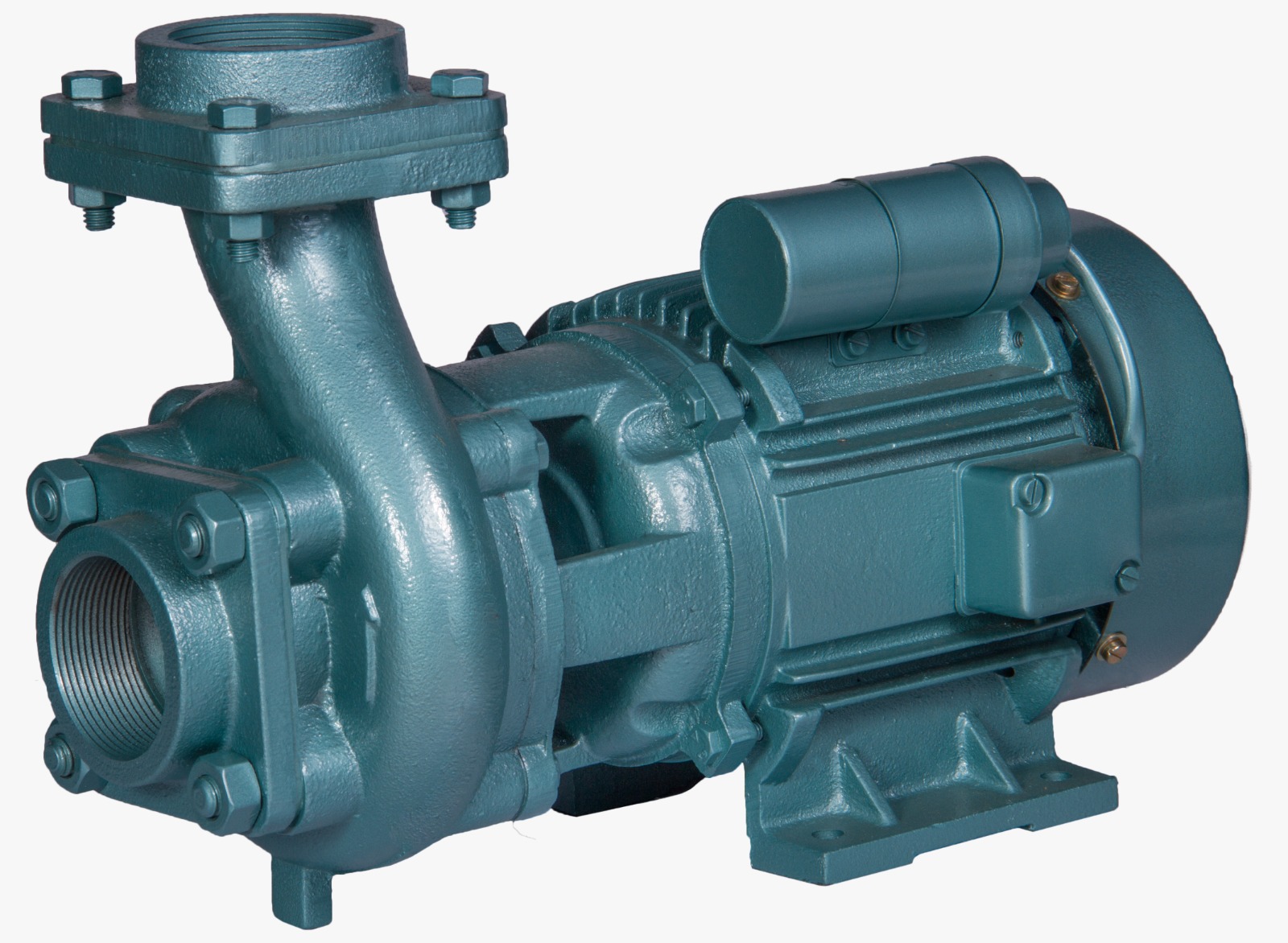

1.0HP
50mm × 50mm
1.5HP
50mm × 50mm

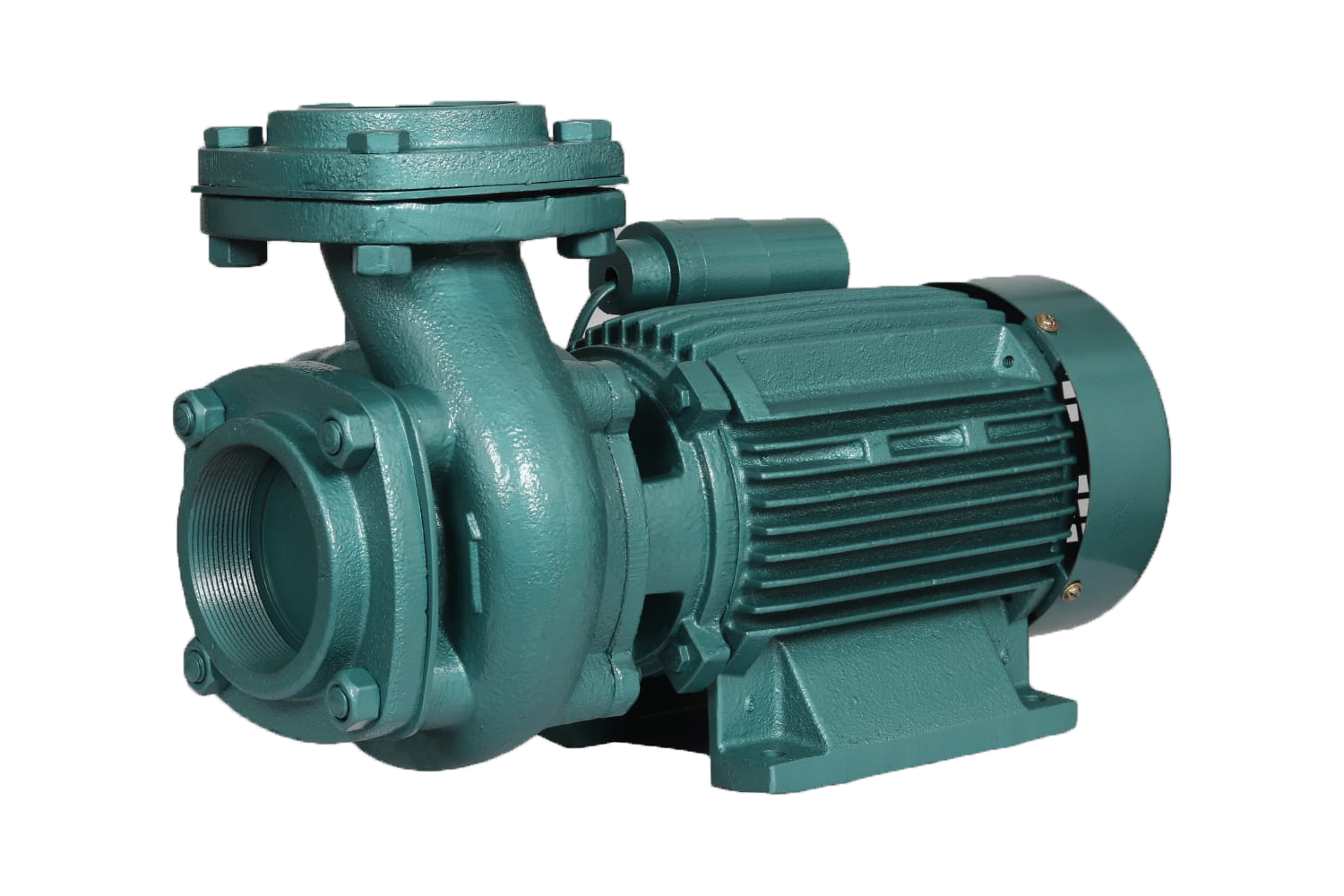

2.0HP
80mm × 80mm
Applications
- Domestic Water Supply
- Agriculture
- Gardening
- Automobile Washing
- Fountains
- Lawn Sprinkler
- Hospitals
- Farm Houses

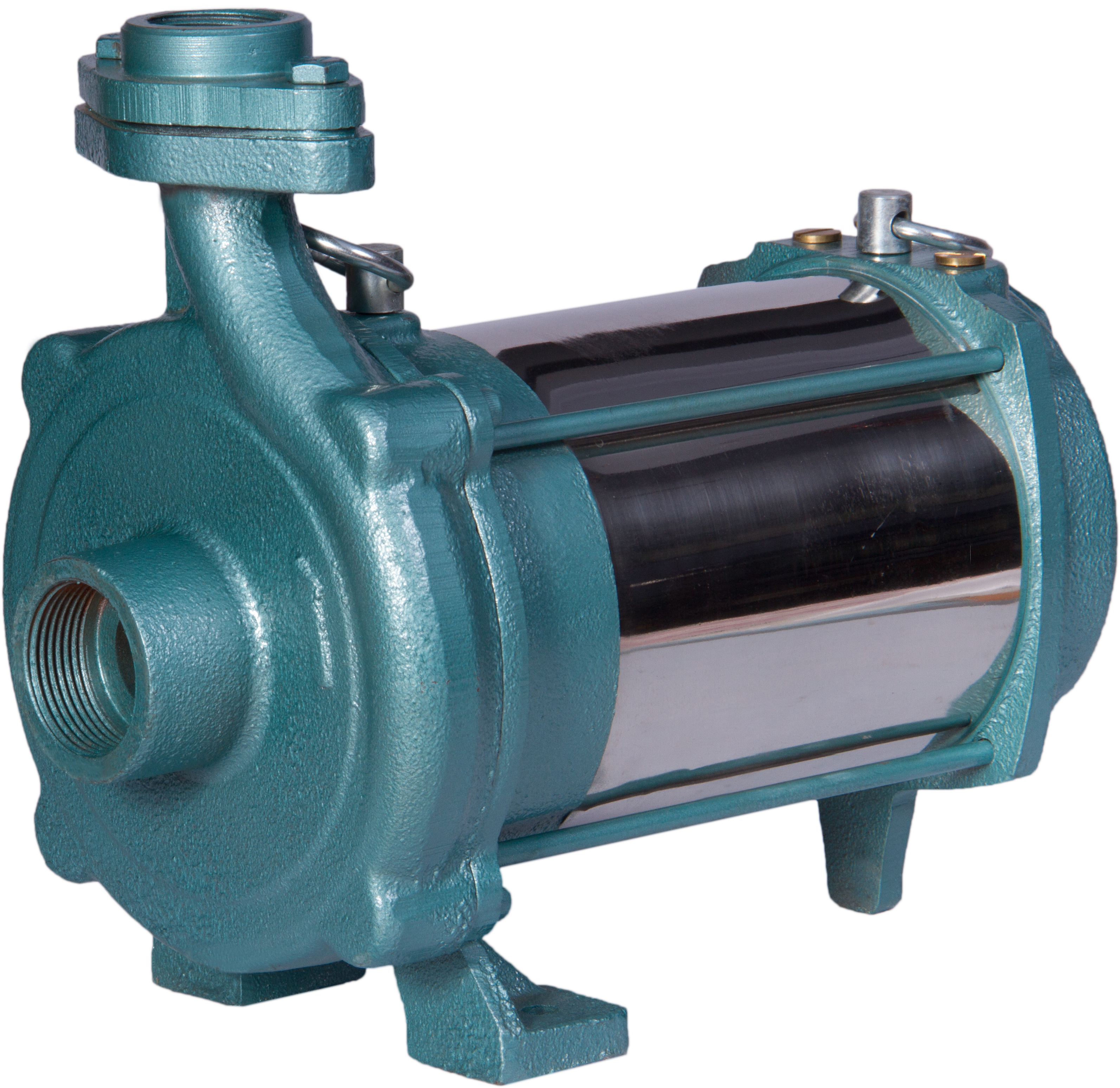

OPENWELL SUBMERSIBLE > HOS SERIES
Suitable for open wells and ground tanks, offering vibration-free operation with long life.
Descriptions
- HARVIN Open well pumps are suitable for open wells and ground tanks.
- Dynamically balanced impeller offers vibration free operation with long life.
- The stator is special water proof synthetic film insulated copper winding wires.
- Dynamically balance Rotor.
- Motor sealing is made by means of grommets 'O' rings, oil seals and sand guard to avoid ingress of well water / sand into the motor.
- Pressure equalizing rubber diaphragm is provided to guard the pressure and volume variation of water inside motor.
Specifications & Material Construction
| SPECIFICATION | |
|---|---|
| Power Range | 0.37 kw - 1.5 kw (0.50HP - 2.0HP) |
| Horizontal Speed | 2880 RPM |
| Voltage | Single Phase 200-240V |
| Nominal Outlet Size | 1", 1 ½", 2" |
| Rotation / Duty | Clockwise from driving end / Type S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run (CSCR) / Permanent Split Capacitor (CSR) |
| MATERIAL OF CONSTRUCTION | |
| Pump Casing | CI (Cast Iron) |
| Impeller | Cast Iron / Stainless steel / Noryl |
| Stator Shell | SS 304 |
| Shaft | Stainless Steel 410 |
| Bearings & Thrust | Journal Bearings, Leaded Bronze, Thrust Assembly Leaded Bronze |
Model Gallery
HOS Series
Applications
- Domestic Usage & Apartments
- Agriculture
- Drip and Sprinkler irrigations
- Washing Systems
- Farms, Gardens and Fountains
- Fire fitting / Pressure boosting system for domestic
Pumped Liquid: Clean, Cold, Non-explosive water free from solids or fibers and abrasives substance.

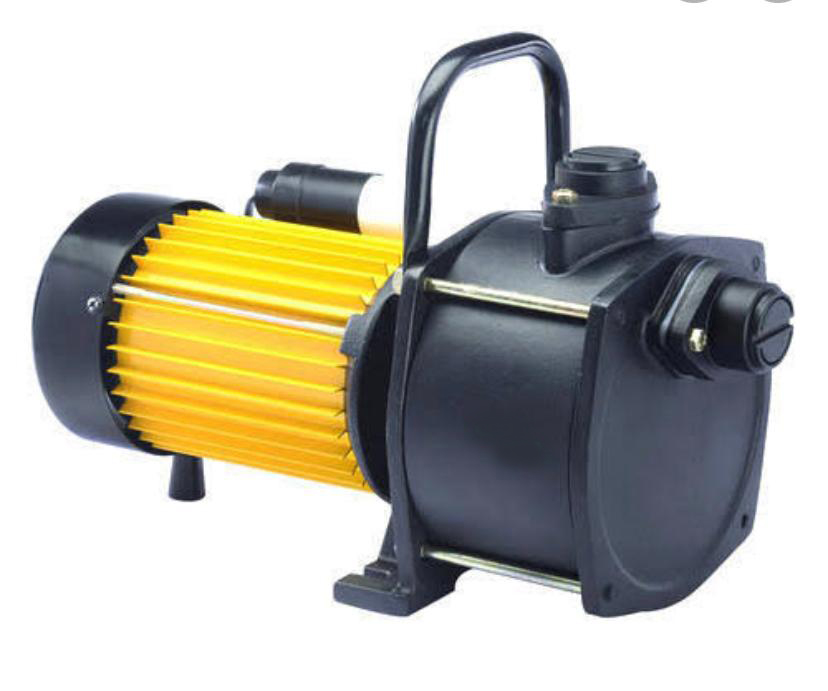

SHALLOWWELL JETPUMPS > HSJ SERIES
Shallow Well Series
Descriptions
- Harvin peripheral pumps impellers are designed to give the best possible efficiency and suction lift characteristics.
- Mechanical seal made of carbon and ceramic is lifted over the shaft.
- Harvin pumps are power-driven by a totally enclosed fan cooled A.C. induction two-Pole motor suitable for continuous duty. (S1)
- Motor stator is made of low volt steel laminations assembled.
- Balanced rotor ensures vibration free and noise free operations.
- The windings are of high-grade enameled copper wire.
Model Gallery
HSJ Series
Technical Data & Material Construction
| TECHNICAL DATA | |
|---|---|
| Power | 0.37kW - 0.75kW (0.5HP - 1.0HP) |
| RPM | 2880 RPM (CSR) type. |
| Voltage | Single Phase 160-240V, 50Hz Frequency |
| Head Range | 3 to 38 mtrs |
| Capacity | 1500 - 3000 LPH |
| Max Suction Lift | 8 metre |
| Max Liquid Temp | 33°C maximum |
| Insulation / Duty | Class B / S1 (Continuous) |
| MATERIAL CONSTRUCTION | |
| Pump Casing | Cast Iron |
| Motor Frame | Aluminum / Casting |
| Impeller | Noryl |
| Shaft | Stainless Steel / EN8 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
Applications
- Domestic water supply
- Fountains
- Municipal water supply
- Lawn Sprinkler
- Gardening
- Pressure Boosting Systems
- Automobile Washing
- Multi-Storied building
Borewell Submersible Pumps
100 mm (3" & 4") pump sets built with thermo plastics offering the best possible hydraulic efficiency.
Descriptions
- Harvin 80 & 100 mm (3" & 4") Bore well submersible pump sets are built with impellers & diffusers made of thermo plastics.
- Check value housing and suction inter connector are made of graded cast iron.
- Outer shell made of high quality stainless steel.
- The optimal design of impellers and diffusers offers best possible hydraulic efficiency.
- Harvin pumps are power driven by water filled.
- Re wind able submersible motor suitable for continuous duty.
- The stator is wound with special water proof synthetic film insulated copper winding wires.
- Specially designed high performance thrust bearings (SS with Carbon).
- Dynamically balanced rotor gives vibration free and noise free operation.
- Motor must be filed with clear, cold, fresh water before erection.
Technical Data & Material Construction
| TECHNICAL DATA | |
|---|---|
| Power Range | 0.37 kw – 1.5 kw (0.50HP – 1.5HP) |
| Speed | 2880 RPM |
| Voltage | Single Phase 200-240V, 50Hz, A.C Supply |
| Duty / Starting | Type of Duty S1 (continuous) / Method of starting CSCR |
| MATERIAL OF CONSTRUCTION | |
| Pump Housing | CI (Cast Iron) |
| Pump Shaft | SS 410 |
| Impeller & Bowl | Noryl |
| Sleeves | Stainless steel |
| Bushes | Bronze |
| Stator Shell | Stainless steel |
| Upper/Lower Housing | Cast iron |
| Rotor | Silver brazed |
Model Gallery

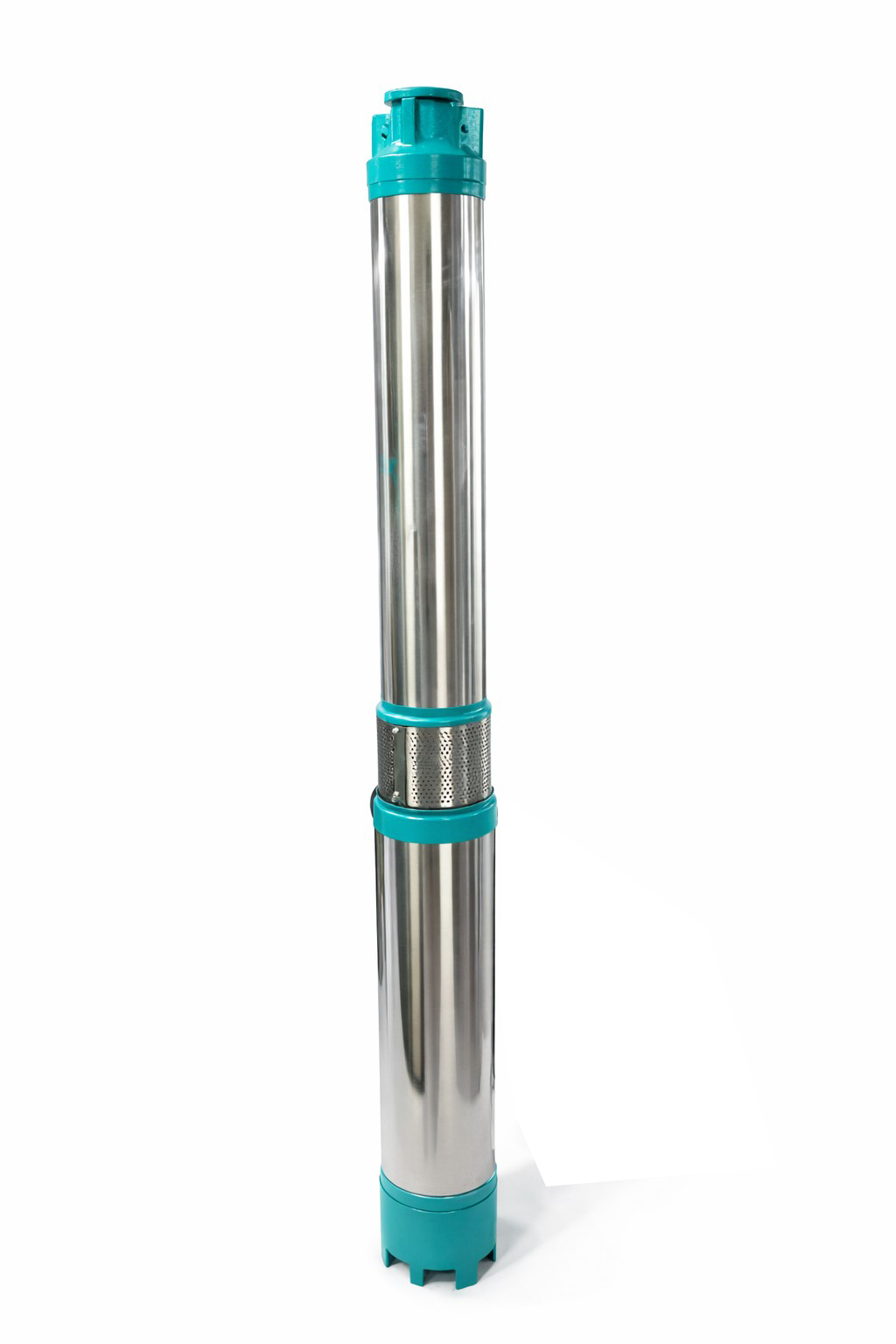

Borewell Series
Applications
- Domestic water supply
- Agricultural applications
- Multi – Storied Building
- Fountains
- Community water supply
- Industrial and Civil applications
Compressors
Available in single and double cylinder design, ensuring higher efficiency and close to zero maintenance.
Specifications
- Available in single and double cylinder design.
- Easy installation and maintenance.
- Easy belt alignment of compressor with the motor ensuring higher efficiency and close to zero maintenance.
- Sound in design and Robust in construction withstanding overload.
- Requires no priming.
- Can be installed in more than one bore based on the water levels.
- Rigorous quality control checks at every stage of manufacturing to ensure high degree of reliability.
- Dynamically balancing of rotors ensuring vibration free performance.
Material of Construction
| MATERIAL OF CONSTRUCTION | |
|---|---|
| Motor Body | Rigid cast iron |
| Crankcase & Cylinder Head | CI FG 200 |
| Cylinder | CI FG 260 |
| Piston | Aluminium alloy |
| Shaft | CR Ni Steel AISI 410 |
| Connecting Rod | Forged alloy steel |
| Crank Shaft | 45C8 |
Working Conditions
| WORKING CONDITIONS | |
|---|---|
| Power Range | 0.75kW - 1.5kW (1 to 2 HP) |
| Maximum Head | 700ft. |
| Max Liquid Temperature | 40° C |
| Max Ambient Temperature | 45° C |
| Version | Single Phase AC, 50Hz, 180 - 240V |
| Type of Duty | S1 (Continuous) |
Model Gallery

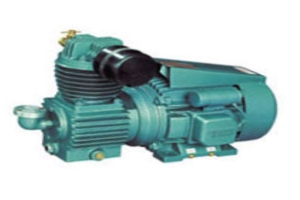

Compressor
Applications
- Compressor Pumps are best suited for less yield bore wells.
- Compressor Pumps can be used in bore wells containing muddy water.
- Compressor Pumps can be used where tube well pumps are not used.
