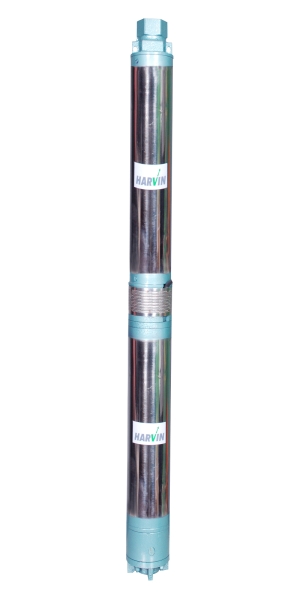

Borewell Submersible Pumps

100mm (4") - Single & Three Phase

Specification

Power	0.37 kW - 3.7 kW (0.5 HP - 5.0 HP)
Frequency	50 Hz
Speed	2880 rpm
Versions	Single Phase, 180 - 240 V, 50 Hz, AC
Method of starting	Capacitor Start Capacitor Run type Direct on Line
Flow Range	10 lph to 275 lph
Head Range	5 mts to 200 mts
Max. Outer Dia	97 & 98
Direction of Rotation	Clockwise from driving end
Type of Duty	S1 (Continuous)
Outlet Size(mm)	25, 32, 40, 50

Material of Construction

COMPONENT	MATERIAL
Outlet Casing	Cast Iron
Impeller	PPO (Noryle)
Diffuser	PPO (Noryle)
Suction Inlet part	Cast Iron
Pump Shaft	Stainless Steel 410
Pump Boddy	Stainless Steel 304
Coupling	SS 410 & SS 304
Distance Piece	Stainless Steel
Stainer	Stainless Steel
Cable Guard	Stainless Steel

Applications

• Domestic Water Supply
• Municipal water supply
• Gardening
• Automobile washing
• Fountains
• Lawn Sprinkler
• Pressure boosting system
• Multi-Storied building
