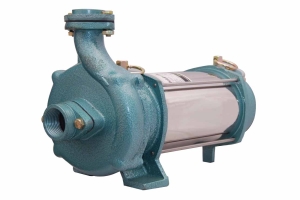

Openwell Submersible Pumps

0.5HP - 2.0HP

Specification

Power	0.37 kW - 6.0 kW (0.5 HP - 2.0 HP) Horizontal
Frequency	50 Hz
Speed	2880 rpm
Versions	Single Phase, 180 - 240 V, 50 Hz, AC
Method of starting	Capacitor start Capacitor run (CSCR)
Maximum Flow Rate	125,000 lph
Maximum total head	150 mts
Class of Insulation	B
Direction of Rotation	Clockwise from driving end
Type of Duty	S1 (Continuous)
Outlet Size(mm)	25, 32, 40, 50, 65, 75

COMPONENT	MATERIAL
Pump Casing	Cast Iron
Motor Body	SS 304, Mild Steel/Cast Iron
Shaft	SS 410
Housing Bushes	LTB-4/Carbon
Distance Piece	Stainless Steel
Strainer	Stainless Steel
Thrust Assembly	Stainless Steel 420 and Graphite Carbon
Winding Wire	Polywrapped / PVC insulated copper
